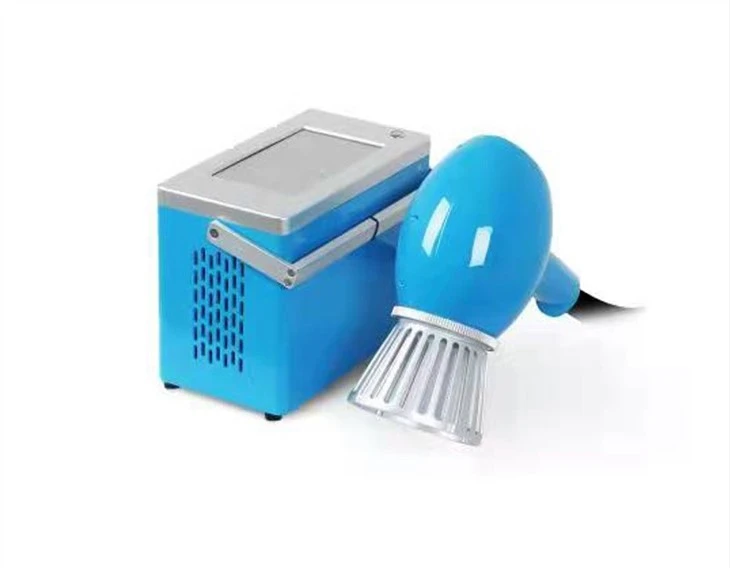

1.Handheld wireless Laser Marking
2.Smart laser marking.
3.Very small,light weight,easy to move around.
4.Operator can bring it everywhere and mark.
5.Wireless,just charge is ok.You can also mark while plugging in
6.Touch screen to edit marking pattern

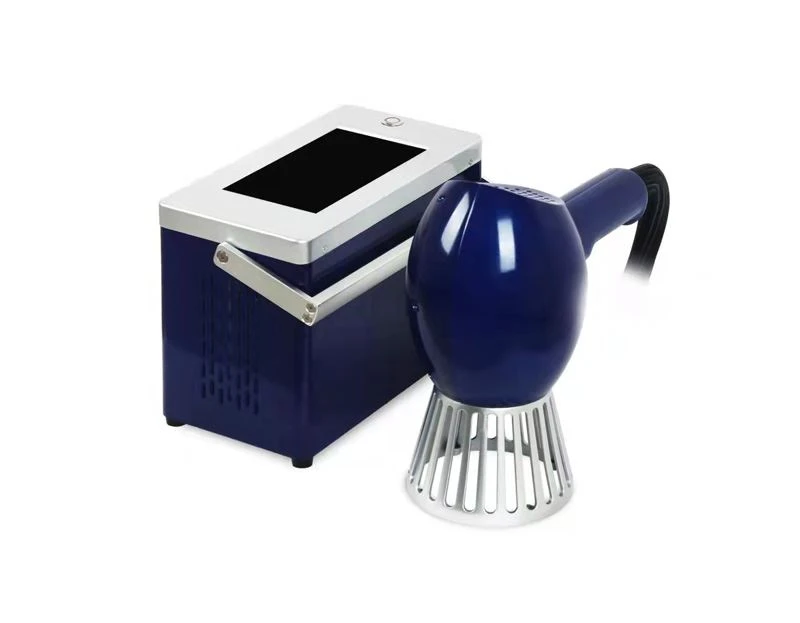

The handheld wireless laser marking machine is a portable, battery-powered, fully automatic marking machine. Due to its powerful 24V rechargeable lithium battery power supply system, it can maintain 6-8 hours of work under normal use, with strong endurance, no cable dragging, and avoiding the embarrassment of sudden power failure during use. With its light weight and multiple functions, it is especially suitable for perfect marking on large, heavy or difficult-to-move workpieces.
1. Wireless marking
★It is equipped with 24V lithium battery to achieve complete wireless.
★It can keep working for 6-8 hours under normal use and has strong endurance.
★Automatic start-stop design, automatic shutdown after 60 seconds of standby, saving power and reducing consumption.
2. 100% portable.
★The weight of the whole machine is 6KG; the marking head is only 1.25KG; it is small and light, and can be printed anytime and anywhere.
3. High-quality light source
★Using advanced fiber 20W laser
★High electro-optical conversion efficiency, good output beam quality and high reliability.

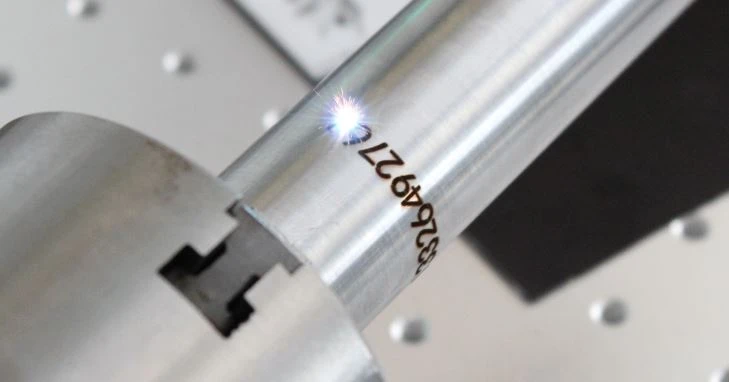

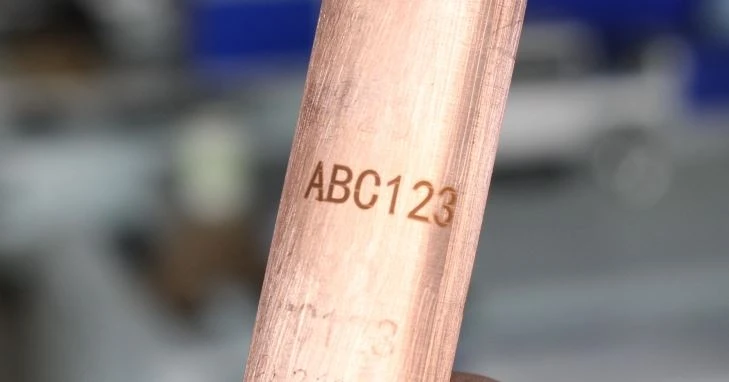

★It can be flexibly applied to non-metallic materials and some non-metallic materials
4. Friendly operation page
| Q8 | |
| DS-20X | |
| 20W | |
| Beam quality M2 | Less than or equal to 1.4 |
| 27-60kHz | |
| 1064±5 | |
| <3% | |
| About 100,000 hours(Non-lifetime) |
| 80mm*80mm | |
| Less than or equal to 1mm(Depending on power and time) | |
| 10000m/s | |
| ±0.002 | |
| 0.1mm | |
| 0.15mm |
| It can work for 6-8 hours under normal use in one day | |
| Built-in aircoling | |
| 500W / 100-240V /50/60Hz |
| The software supports text,pattern, two-dimensional code, barcode, serial number, graphics and other marking content (standard USB input) | |

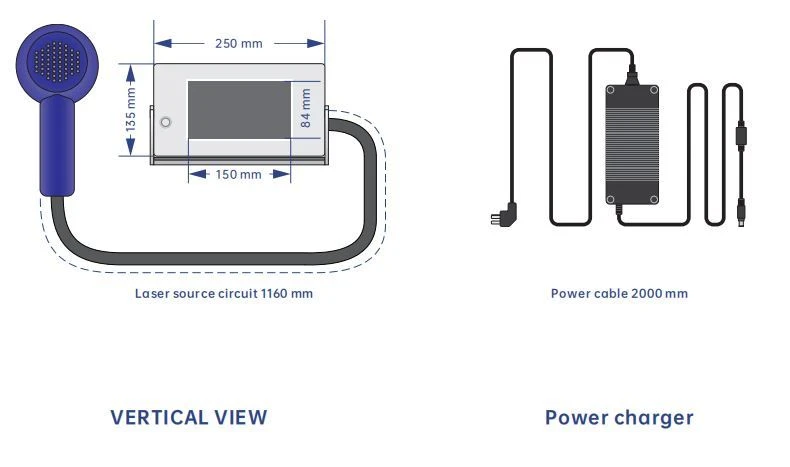

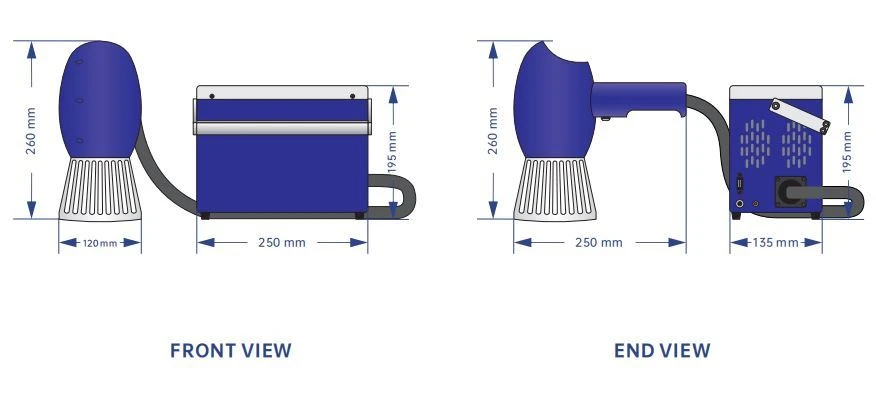

| Control chassis:250X135X195 mm Marking head:250X120X260 mm | |
| Machine 6kg, Marking head 1.25kg |
Average output power:20W
6~8 hours long battery life

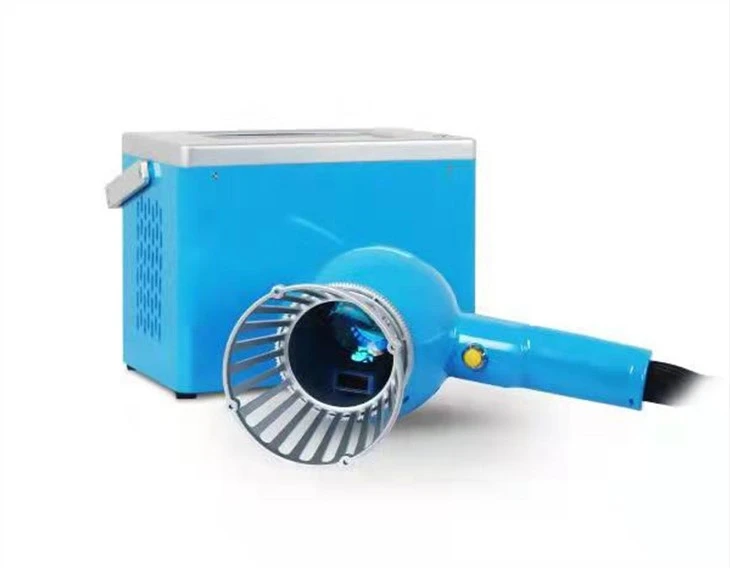

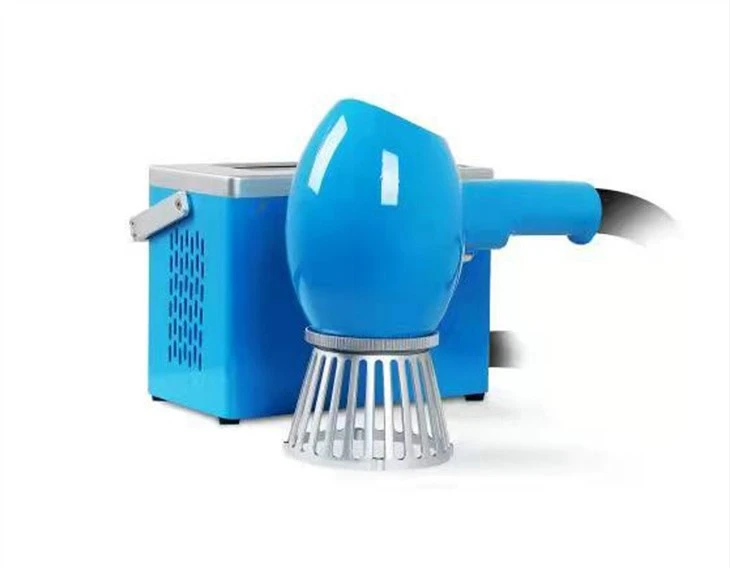

Q8 is powerful, sturdy and reliable. The weight of the machine is 6 kg. Its marking head is only 1.25 kg.
It supports rear USB interface. The software supports marking content such as text, pattern, two-dimensional code, bar code, serial number, and graphics.

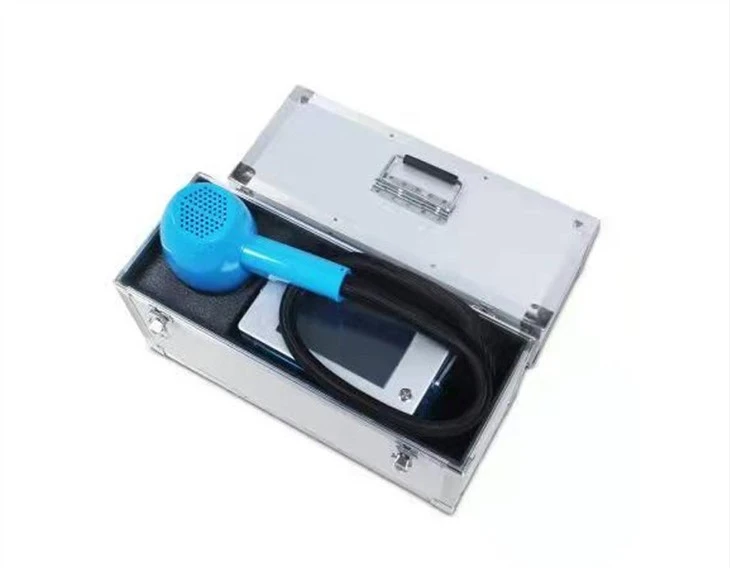

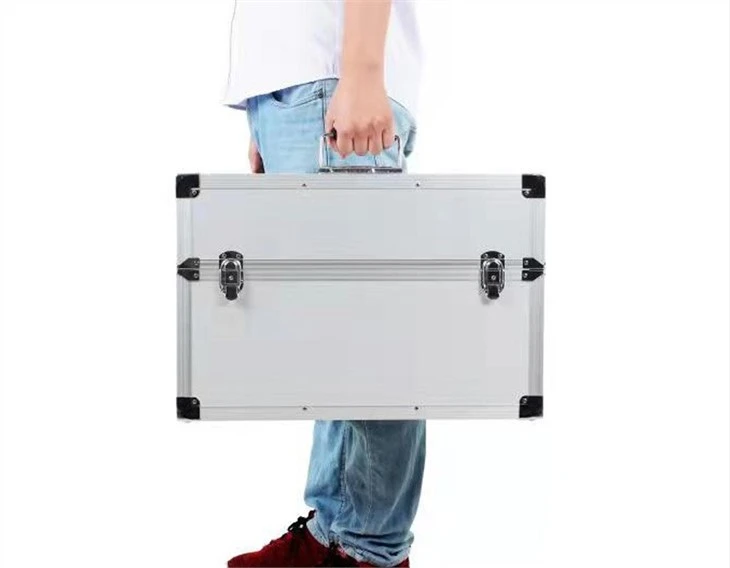

Q8 has a special box for easy storage and can be carried to different places. It is one of the smallest rechargeable laser marking machines on the market.
Added automatic start-stop design, it will automatically stop after 60 seconds of standby and restart by tapping the screen;The standby time can be customized to effectively save unnecessary power consumption.

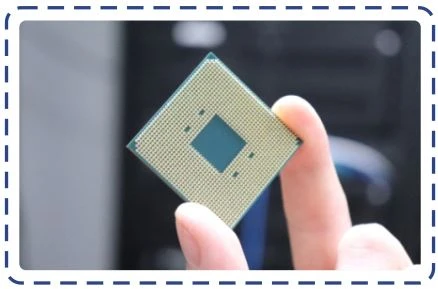

Eight-core Cpu, Configure Linux System
The host adopts an 8-core processor and is equipped with a Linux system with a high security level. It has stable performance, fast response speed and is not easy to be poisoned and downtime.
